Article code:
OEM:
SPEED OF WIRE ROPE WINCHING AND ELECTRICITY CONSUMPTION
| Rope load (kg) | Winding speed (m/min) | Electricity consumption (amp) |
|---|---|---|
| 0 | 8 | 70 |
| 910 | 4.5 | 150 |
| 1814 | 3.5 | 217 |
| 4536 | 2.5 | 435 |
PULLING FORCE DEPENDING ON ROPE LAYER
| Rope layer | Pulling force (kg) | Length of rope on the winch (m) |
|---|---|---|
| 1 | 4536 | 4.8 |
| 2 | 3653 | 12 |
| 3 | 3004 | 21 |
| 4 | 2570 | 28 |

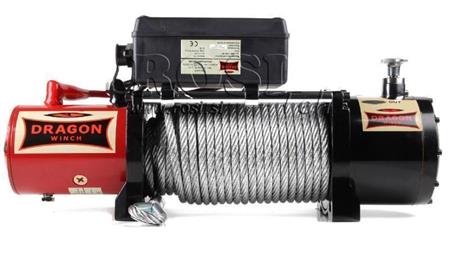

The Maverick 10000 HD winch is suitable for small, medium, and large off-road vehicles. Also for towing vehicles and industrial vehicles. It can pull up to 4536 kg (10000lbs). The design of the winch with a powerful motor and transmission, as well as a good construction of the winch itself, allows use in practically all conditions. The Maverick 10000 HD winch provides the highest level of reliability and safety.
Supplier:
Poland
Return or exchange:
14 days
pulling force:
4536 kg
length of wire rope:
28m, thickness 9.5 mm
power supply:
electricity (via battery)
control:
wired and wireless controller

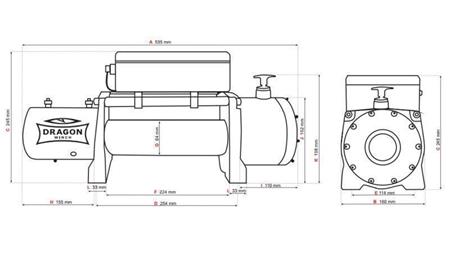

Dimensions (d/w/h):
535mm x 160mm x 245mm
dimensions of mounting hole spacing:
254mm x 114mm
brake:
dynamic
power transmission system:
3-stage planetary
wire rope guide:
4 cylinders
Voltage:
12V
power:
6.8 hp
