-20%

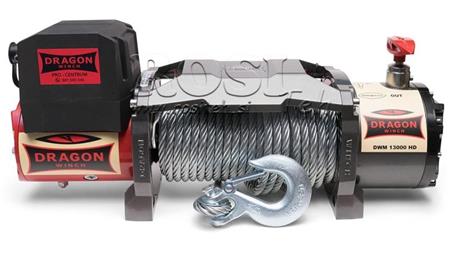

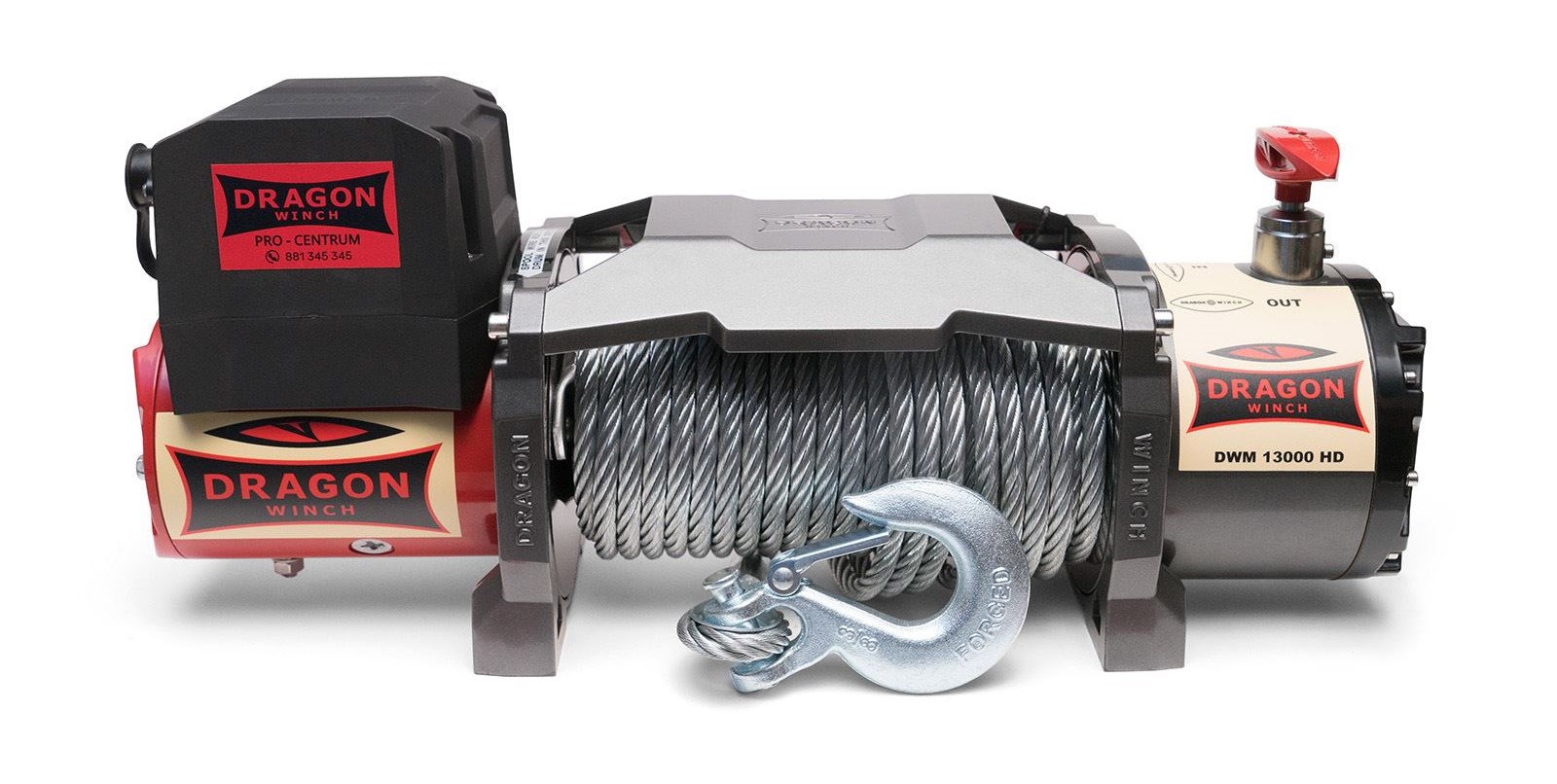

12 V ELECTRIC WINCH DWM 13000 HD - 5897 kg
Article code:
11890
OEM:
9990000037049
Old price with VAT:
496,00 €
Tax rate
22 %
Discont:
20 % ( 99,20 € )
Price without VAT:
406,56 €
DISCOUNT PRODUCTS
396,80 €
Lowest price in 30 days
496,00 €
Ref:
7
The Maverick 13000 HD winch is suitable for small, medium, and large off-road vehicles. Also for tow trucks and industrial vehicles. It can pull up to 5897 kg (13000lbs). The design of the winch with a powerful motor and transmission, as well as with a good construction of the winch itself allows it to be used in practically all conditions. The Maverick 13000 HD winches provide the highest level of reliability and safety.

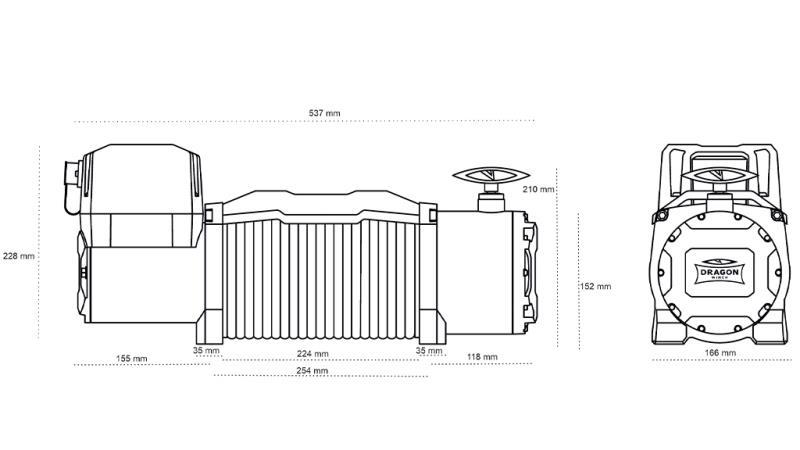

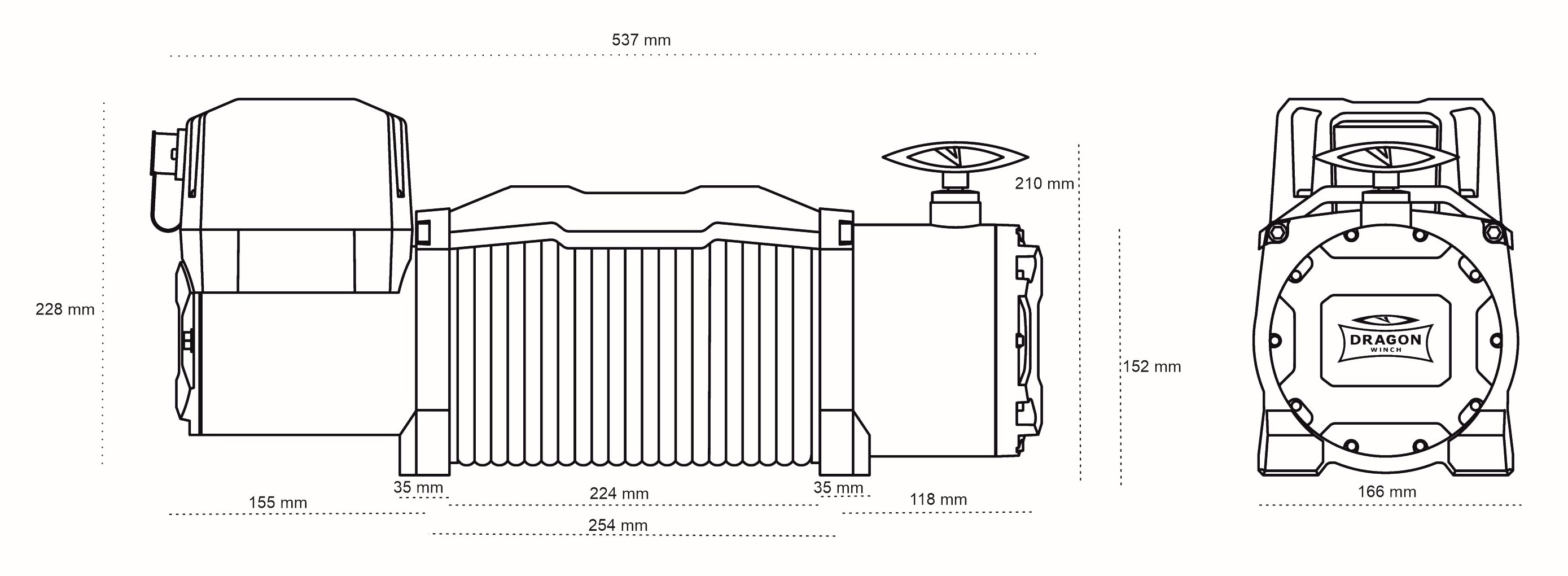

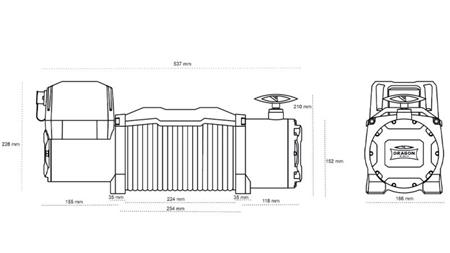

DIMENSIONS
ROPE WINDING SPEED AND ELECTRICITY CONSUMPTION
| Rope load | Winding speed (m/min) | Electricity consumption (amp) |
|---|---|---|
| 0 | 5,9 | 58 |
| 1814 | 4,4 | 158 |
| 3629 | 2,8 | 314 |
| 5897 | 0,8 | 448 |
TRACTION DEPENDING ON THE ROPE LAYER ON THE WINDER
| Rope layer | Traction force (kg) | Length of wire on the winder (m) |
|---|---|---|
| 1 | 5897 | 4,9 |
| 2 | 4658 | 11 |
| 3 | 4009 | 17,8 |
| 4 | 3463 | 26 |
| 5 | 2889 | 30 |

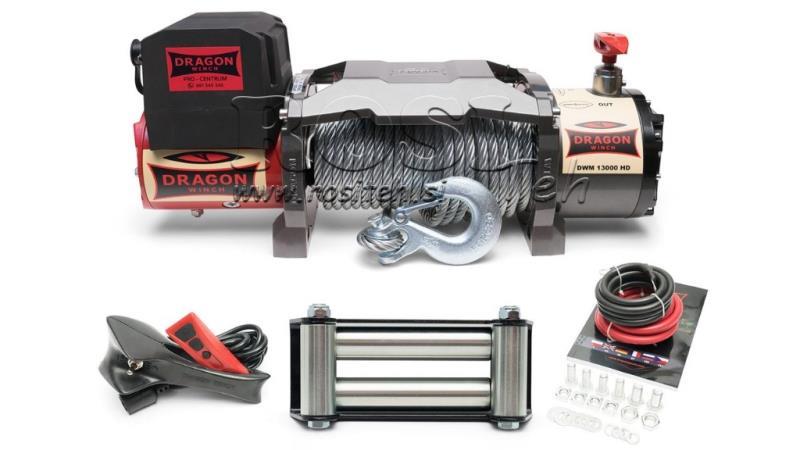

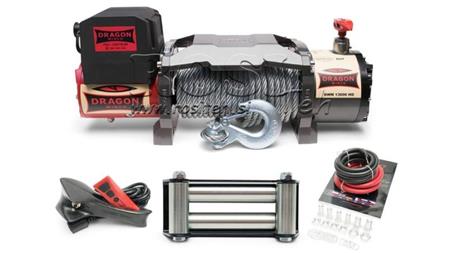

WHAT DOES THE PACKAGE INCLUDE?
|
|
|
|
|
|
|
|
|
|
|
|

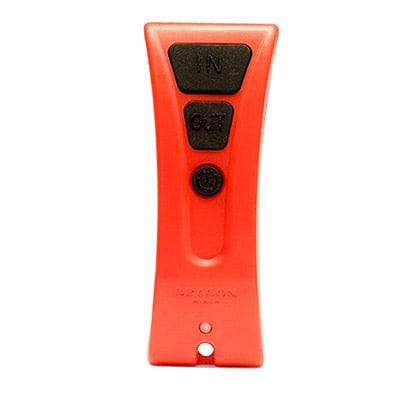

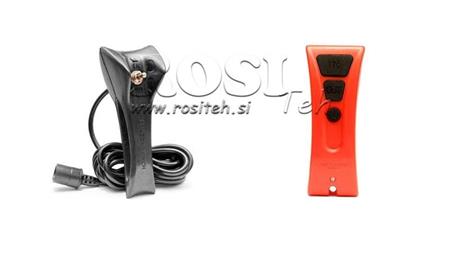

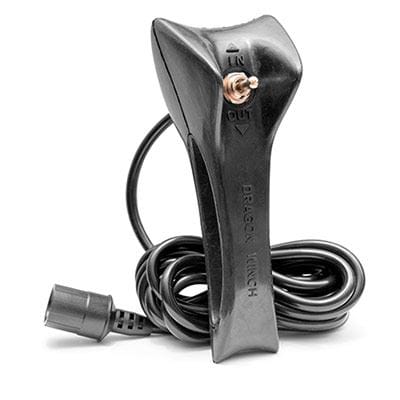

WHERE CAN YOU FIND A WIRELESS WINCH CONTROLLER?
|
|
|
supplier:
Poland
brake:
dynamic
power:
6,8 HP
power supply:
electricity (accumulator)
voltage:
12V
power transmission system:
3-level planetary gear
dimension between holes for installation:
254 mm x 114 mm
steering:
wired and wireless controller
dimensions (l/w/h):
537 mm x 166 mm x 228 mm
return or exchange:
14 days
length of wire rope:
20 m
traction efficiency:
5897 kg
warranty:
6 months
guide of wire rope:
4 rollers
