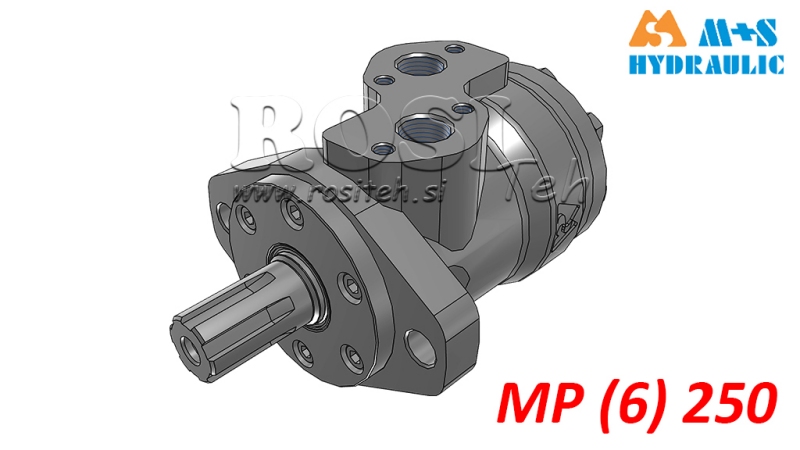

HYDRAULIC MOTOR MP 250 CC - 6 TEETH
| Technical data | |
| Supplier: | Bulgaria |
| Return or exchange: | 14 dni |
| Garancija: | 6 months |
| Weight: | 6,8 kg |
| Temperature range: | from -40°C to 140 °C |
| cm³/revolution: | 247,5 |
| Revolutions: | constant revolutions 242 rpm, intermittent 303 rpm |
| Power: | constant power 7,5 kW, intermittent 12 kW |
| Torque: | constant torque 38 daNm, intermittent 58,3 daNm, max. 68,5 daNm |
| Inlet pressure: | constant pressure 175 bar, intermittent 200 bar, max. 225 bar |
| Pressure drop: | constant pressure 110 bar, intermittent 175 bar, max. 225 bar |
| Oil flow: | constant flow 60 L/min, intermittent 75 L/min |
| Shaft diameter: | BS 2059 (SAE 6B) - 25,3 mm |
| Connection thread: | 1/2" |
Description
Hydraulic motors MP are reliable and compact, designed for use in various hydraulic systems where high efficiency and long service life are required. They are characterized by robust construction, precise manufacturing, and excellent resistance to heavy loads. The six-tooth shaft ensures excellent grip and power transmission.
They are suitable for use in agricultural, forestry, and industrial machinery, providing reliable power transmission and consistent torque at different rotation speeds.
Main advantages of hydraulic motors MP:
- high efficiency and precise operation
- robust construction and long service life
- suitable for demanding working conditions
- wide range of sizes
Applications: hydraulic winches, wood splitters, conveyor belts, and as a drive for agricultural and forestry attachments.
| L | L1 | |
| (mm) | ||
| MP (6) 50 | 135,5 | 6,67 |
| MP (6) 80 | 139,5 | 10,67 |
| MP (6) 100 | 142 | 13,33 |
| MP (6) 125 | 145,5 | 16,67 |
| MP (6) 160 | 150 | 21,33 |
| MP (6) 200 | 155,5 | 26,67 |
| MP (6) 250 | 162 | 33,33 |
