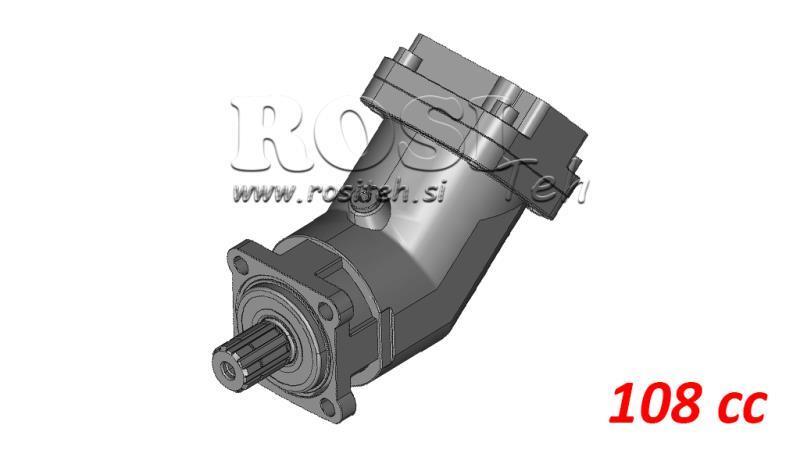

PISTON HYDRAULIC MOTOR 108CC - 600NM
Piston hydraulic motors are used in various hydraulic systems to convert hydraulic energy into mechanical energy. They are utilized in different industries, from construction (excavators, loaders, cranes) and agriculture (tractors and attachments) to manufacturing and maritime.
Piston hydraulic motors operate through pressurized hydraulic fluid that moves pistons within the block. The pistons then rotate the shaft with their movement, enabling mechanical work to be performed. This mechanism allows for precise control over speed and torque, making piston hydraulic motors suitable for demanding applications.
We offer a range of high-quality piston hydraulic motors designed to meet the strict requirements of modern industry and agriculture. Our hydraulic motors are high-performance, reliable, and efficient.
Dimensions:
Code | Flow | R1 = R2 | Max. torque | RPM | A | B | C |
(cm3) | (350 bar) | (rpm) | (mm) | ||||
14196 | 25 | 3/4' | 140 | 6250 | 197 | 107,5 | 54 |
14197 | 32 | 3/4' | 174 | 6250 | 202 | 107,5 | 54 |
14198 | 40 | 3/4' | 228 | 5600 | 202 | 107,5 | 54 |
14199 | 50 | 3/4' | 280 | 5000 | 214 | 107,5 | 54 |
14200 | 63 | 3/4' | 350 | 5000 | 214 | 107,5 | 54 |
14201 | 80 | 3/4' | 440 | 4400 | 240 | 122,5 | 60 |
14202 | 108 | 1' | 600 | 4000 | 240 | 122,5 | 60 |
14203 | 130 | 1' | 710 | 3400 | 240 | 122,5 | 60 |
Working pressure: 400 bar
Max. pressure: 450 bar
