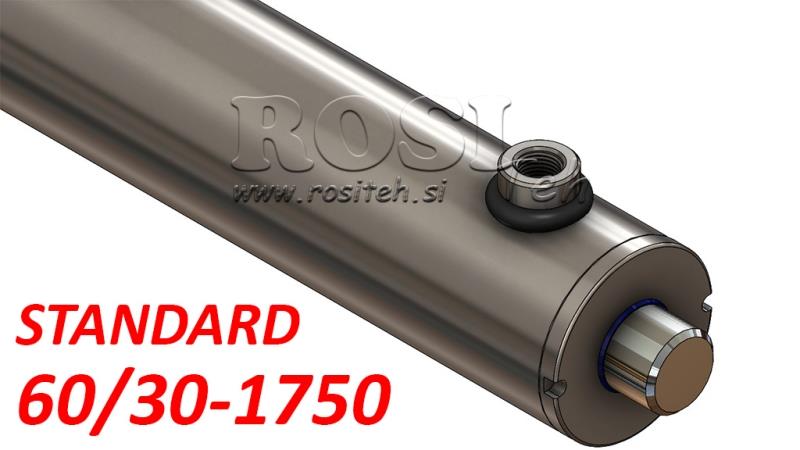

HYDRAULIC CYLINDER STANDARD 60/30-1750
Article code:
14835
OEM:
9990000179879
Tax rate
22 %
Price without VAT:
176,23 EUR
Price with VAT:
215,00 EUR
Ref:
10
| Technical information | |
| Supplier: | Italy |
| Returns or exchange: | 14 days |
| Warranty: | 2 years |
| Cylinder extension force (at 180 bar): | 5,09 ton |
| Cylinder extension force (at 250 bar): | 7,07 ton |
| Cylinder retraction force (at 180 bar): | 3,82 ton |
| Cylinder retraction force (at 250 bar): | 5,3 ton |
| Maximum speed: | 0,5 m/s |
| Maximum pressure: | 250 bar |
| Weight: | 28,1 kg |
| Inner diameter of the cylinder piston: | 60 mm |
| Cylinder piston rod diameter: | 30 mm |
| Stroke of the cylinder: | 1750 mm |
DIMENSIONS
| STANDARD | E | D (stroke) | |
| Code | [mm] | ||
| 10769 | 60/30-100 | 260 | 100 |
| 10674 | 60/30-150 | 310 | 150 |
| 10770 | 60/30-200 | 360 | 200 |
| 10771 | 60/30-250 | 410 | 250 |
| 10772 | 60/30-300 | 460 | 300 |
| 10773 | 60/30-350 | 510 | 350 |
| 10774 | 60/30-400 | 560 | 400 |
| 10775 | 60/30-450 | 610 | 450 |
| 10776 | 60/30-500 | 660 | 500 |
| 14145 | 60/30-550 | 710 | 550 |
| 10777 | 60/30-600 | 760 | 600 |
| 10778 | 60/30-700 | 860 | 700 |
| 10779 | 60/30-800 | 960 | 800 |
| 10780 | 60/30-900 | 1060 | 900 |
| 10781 | 60/30-1000 | 1160 | 1000 |
| 12250 | 60/30-1100 | 1260 | 1100 |
| 12251 | 60/30-1200 | 1360 | 1200 |
| 12252 | 60/30-1300 | 1460 | 1300 |
| 12253 | 60/30-1400 | 1560 | 1400 |
| 12254 | 60/30-1500 | 1660 | 1500 |
| 14835 | 60/30-1750 | 1910 | 1750 |
| 14836 | 60/30-2000 | 2160 | 2000 |
